Light Vehicle Wheel

Light Vehicle Wheel

Feature of Light Vehicle Wheel

Wheels for Light Vehicles (Passenger Cars, Mini Vans, SUV’s & MUV’s)

  • Single-piece wheel wherein the disk and rim are welded together.
  • Wheels for both tube and tubeless tyres.
  • Services provided for wheel and tyre assembly.
  • Expertise to offer light-weight wheels using micro-alloysteel, thereby incorporating ultrahigh strength and product life.
  • Cathodic Electrophoretic Dip (CED) painting & top-coat colour options.
  • Styled Steel Wheels with Alloy,better appearence and improved brake space,availability.

Range of Light Vehicle Wheel

WHEELS INDIA LIMITED

CAR, VAN & JEEP WHEELS

SI No RIM SIZE WIL PART No. No.of bolt holes PCD BORE DIA OFFSET
1 5 J x 14 LP 1300 4 114.3 66 40
2 5.00B x 13 LP 1124 4 98 58 44
3 5.5F x 15 LP 1001 5 110 110 40
4 5.5F x 15 LP 1023 5 130 84 51.5
5 5.5F x 15 LP 1237 5 160 108 46
6 4 J x 12 LP 1242 4 114.3 73 40
7 5 J x 14 LP 1291 4 114.3 73 46.5
8 6 J X 15 LP 1294 5 160 108 51.5
9 6 J X 15 LP 1354 6 210 169 110
10 4 J x 15 LP 1034 5 152.4 102.4 30
11 5 J x 13 LP 1085 4 100 56 46
12 5J x 14 LP 1336 5 152.4 102.4 28.6
13 4.5E X 16 LP 1070 5 139.7 109.6 19.1
4.5E X 16 LP1070 5 139.7 109.6 19.1
14 5.5F x 15 LP 1078 5 139.7 109.6 12
15 6J x 15 LP 1081 5 160 108 55
16 4.5E X 16 LP 1095 5 160 108 55
17 5 1/2J x 16 LP1160 5 160 108 55
18 6J x 15 LP 1173 5 160 108 55
19 61/2 J x 16 LP 1199 5 160 108 55
20 6J x 15 LP 1232 5 120 66.5 40
21 5 1/2J x 15 LP 1233 5 160 108 55
22 6 1/2J x 16 LP 1250 5 160 108 55
23 6J x 15 LP 1312 5 120 66.5 40
24 6 1/2J x 16 LP 1329 5 160 108 55
25 4J x 12 LP 1334 5 95 50 55
26 6J x 15 LP 1347 5 120 66.85 40
27 6 1/2J x 16 LP 2004 5 160 108 55
28 4.5E X 16 LP 897 5 139.7 109.6 19.1
29 5 1/2J x 15 LP 1015 5 139.7 108 10
30 4.00B x 13 LP 1048 4 114.3 60 45
31 4 J x 12 LP 1054 4 114.3 60 45
32 4 J X 13 LP 1123 4 100 54 45
33 4.00B x 12 LP 1136 4 100 52 45
34 4 1/2J x 13 LP 1181 4 114.3 60.5 40
35 4.00B x12 LP 1185 4 114.3 60 45
36 6J x 15 LP 1227 5 114.3 60 50
37 4 1/2J x 13 LP 1261 4 100 54 45
38 4 1/2J x 14 LP 1262 4 100 54 45
39 5J x 14 LP 1295 4 100 54 40
40 51/2 J x 15 LP 1341 5 114.3 60 40
41 4 1/2J x 13 LP 1348 4 100 54 45
42 5 1/2J x 15 LP 1024 5 160 108 44.5
43 4 1/2J x 13 LP 1077 4 107.95 65 43
44 5J x 14 LP 1116 4 108 65 43
45 5 1/2J x 16 LP 1157 5 160 108 39
46 4 J X12 LP 1193 4 114.3 73 40
47 5 1/2J x 14 LP 1240 4 160 60 59
48 4.00B x 12 LP 1254 3 98.5 56.5 38
49 5J x 14 LP 1260 4 114.3 73 46.5
50 5 1/2J x 15 LP 1286 5 160 60 75
51 4 1/2J x 13 LP 1288 4 114.3 73 34
52 4J x 12 LP 1331 4 114.3 73 43
53 5 1/2J x 16 LP 1353 5 160 108 39
54 6 1/2J x 16 LP 2003 5 160 108 44.5
55 61/2J x 16 LP 2007 5 160 108 50
56 3.00D x 8 LP 1203 4 70 50 18

WHEELS INDIA LIMITED

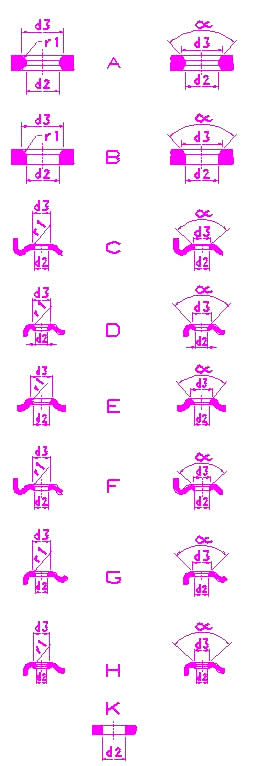

BOLT HOLE TYPE

SL. NO. d.2 d 3 r 1
1 21.5 27 16
2 27 32 18
3 29 34 22
4 32.5 37 22
5 32.5 38 22
6 16.7 21.3   90°
7 25.4 31   80°
8 16   14
9 16.8   14
10 18   14
11 18.5   14
12 18.8   15
13 21.5   15
14 12.7     60°
15 13.25     60°
16 13.5     60°
17 14     60°
18 14.5     60°
19 15     60°
20 16.7     60°
21 17.5     60°
d2 - Bolt Hole Diameter 22 14.2     90°
d3 - Counter Sunk Diameter 23 16.5     90°
r1 - CSK Spherical Radius 24 19     90°
∞ - CSK Conical Angle 25 20     90°
26 22.2     90°
27 17
28 17.5
29 21
30 22.5
31 24
32 25.4
33 26
34 15.3     60°
35 26 32 18
36 16 20 12
37 19
38 15     90°
39 26.4   16
40 15   12
41 20
42 26 31   80°
43 15
44 16
45 21 25.75 16
46 19.5
47 32.2 37 22.2
48 32.5 38 22.2
49 16.7 23.1 14
50 23.5
51 30.5 37 22.2
52 17.5 22.4   90º
53 20.5
54 17.5 23   90º
55 21.75 27.25 16
56 25.4 31   80º
57 24.8
58 20.6 36 22.2
59 28.5 36 22.2
60 32.5 37.5 22.2
61 36
62 22
63 22.2
64 19 28 18
65 24     90º
66 30.2 38 22.2
67 23
68 16.3     60º
69 16.5
70 19.8
71 21.5 37 22.2
72 10.5
73 27
74 14.5
75 11.3
76 21.5
77 25 34   90º
78 35 45 30
79 14.2 18.3   60º
80 38.5 32.5 22
81 32.5
82 20.6
83 25
84 22.5 32.5   90º
85 24 31   60º
86 30.73 39 22.2
87 32.5 39.34 22
88 32
89 22.2 32   90º
90 25.5
91 17     60º
92 16.4     60º
93 15.9 23   60º
94 17.5 23.5   45º
95 26.5
96 19 27   90º
97 24.75
98 18.3 24   60º
99 15.14 26.3 14
100 20 25 16
101 15.14 26.3 14.1
102 32.5 37.5 22
103 21.4 37 22.4
104 21.5 37 22.4
105 18.3 24.1   60º
106 17.25
107 25.53
108 21.5 30 18
109 21.5 37.1 22.2
110 18
111 20 30 18
112 19 30.83 18
113 23.8
114 27 32.5 18
115 23.8
116 18.5 22.5   60º
117 26.5 33 18
118 17.5 32.3   60º
119 19 26.75   90º
120 24.1
121 32.5 37 22.5
122 30.2
123 21.5 37.4 22.2 -
124 35.7
125 15.5
126 15.5     60º
127 26 32.5 22.2
128 16.6
129 16     60º
130 18.5 24   60º
131 18.5
132 22 38   90º
133 13
134 35
135 21 27   90º
136 23 30.5 18
137 16 21.5  - 90º
138 19.5 22.5 - 63º
139 27.5 - - -
140 17 22   90º
141 19.6 - - 60°
142 18 24   45°
143 21.5 38 22.4 -
144 30.5
145 16.7 25.4 - 45°
